everCare Medical Trolley IVT-300

SKU IVT-300

Mobile clinical trolley combining a countertop drawer unit, a four-hook infusion pole and multiple accessory holders on a four-castor chassis, for organized transport of clinical supplies.

Lead time: 2–3 weeks

All products are quoted per order. Request a quote for pricing, lead time and freight to your region.

Component explorer

Interactive — explore each component below.

Select a marker to inspect each component.

Use Tab to move between components and Enter to open a component's details.

Select a marker to inspect each component.

A closer look

Designed as a complete system

  1. 01 / 04

    The T-slot aluminum column

    Every accessory mounts to an aluminum column with a T-slot system. Reposition holders, baskets and brackets along the column without tools — the trolley adapts to your room, not the other way around.

  2. 02 / 04

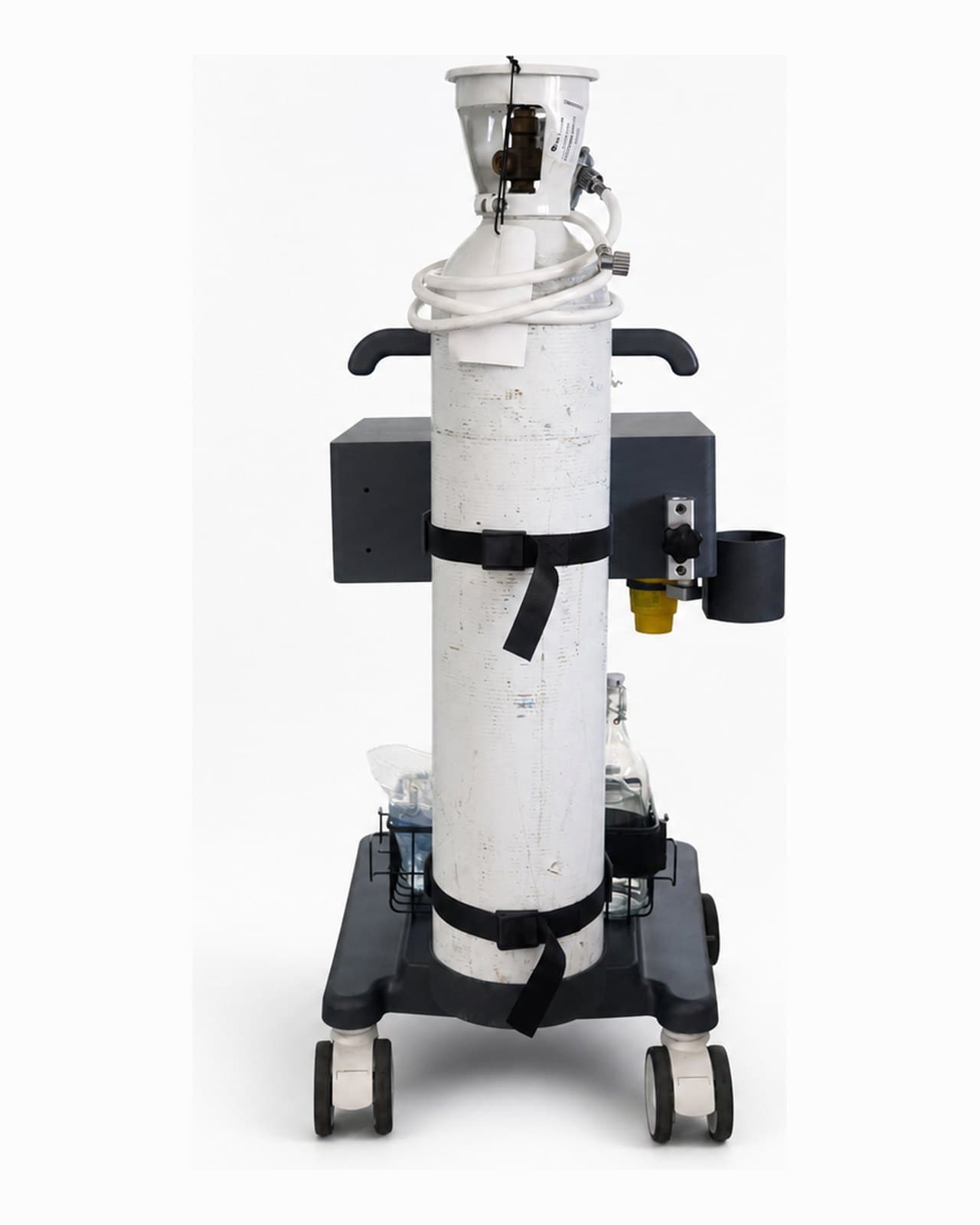

    Secure cylinder mounting

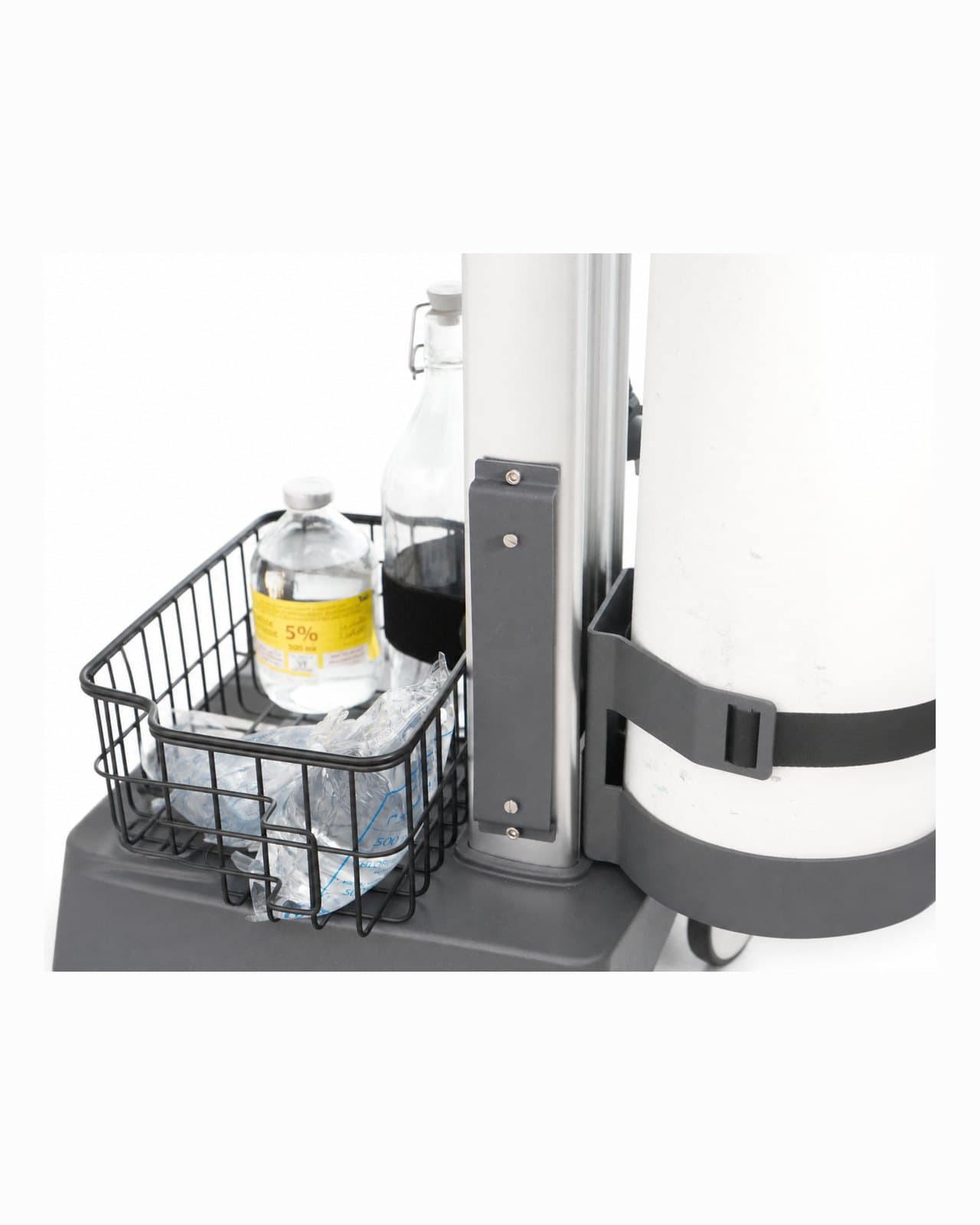

    Upper and lower supports hold a cylinder firmly against the column — the upper support secures the neck with a retention strap while the lower support carries the weight, keeping the tank stable while the trolley moves.

  3. 03 / 04

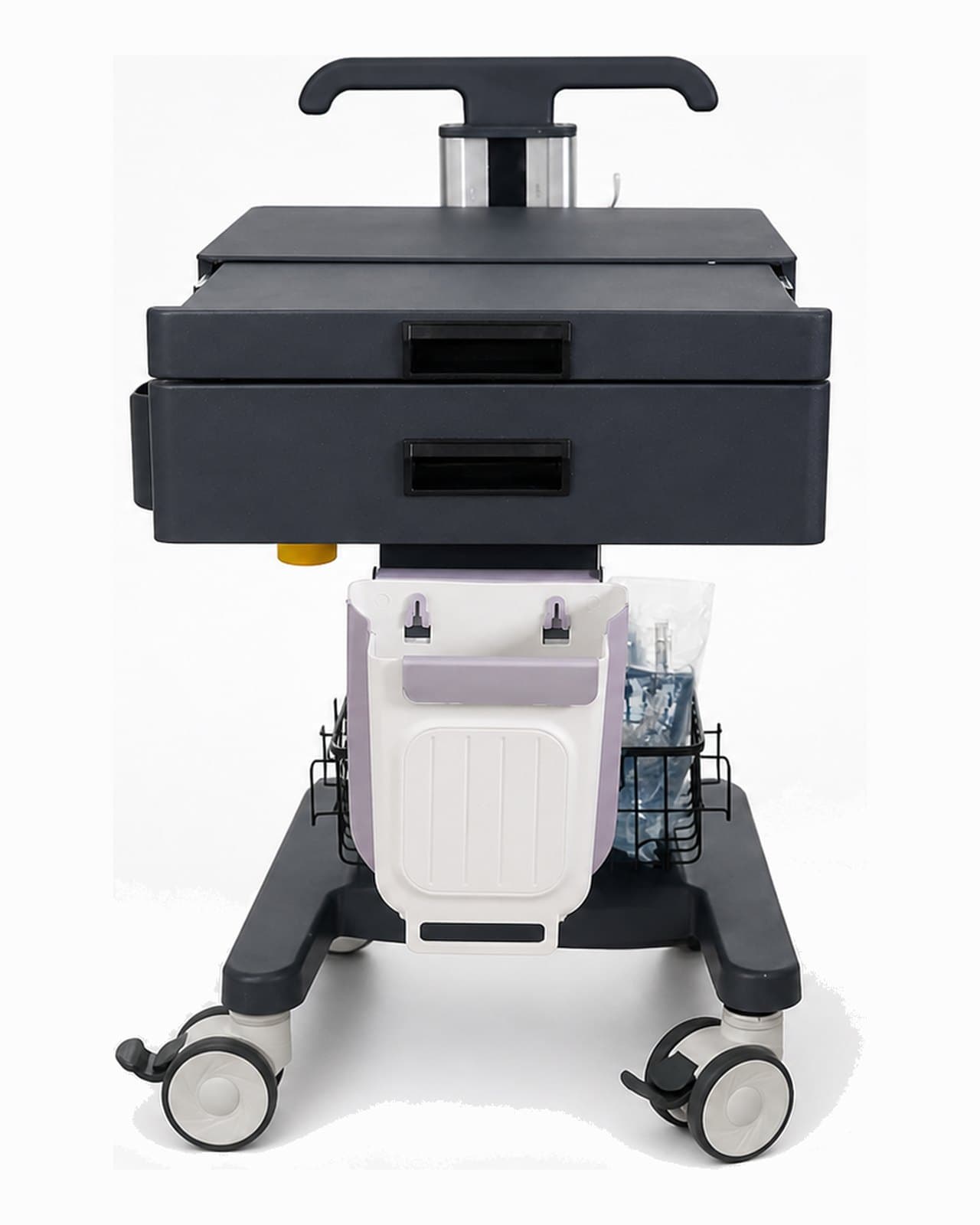

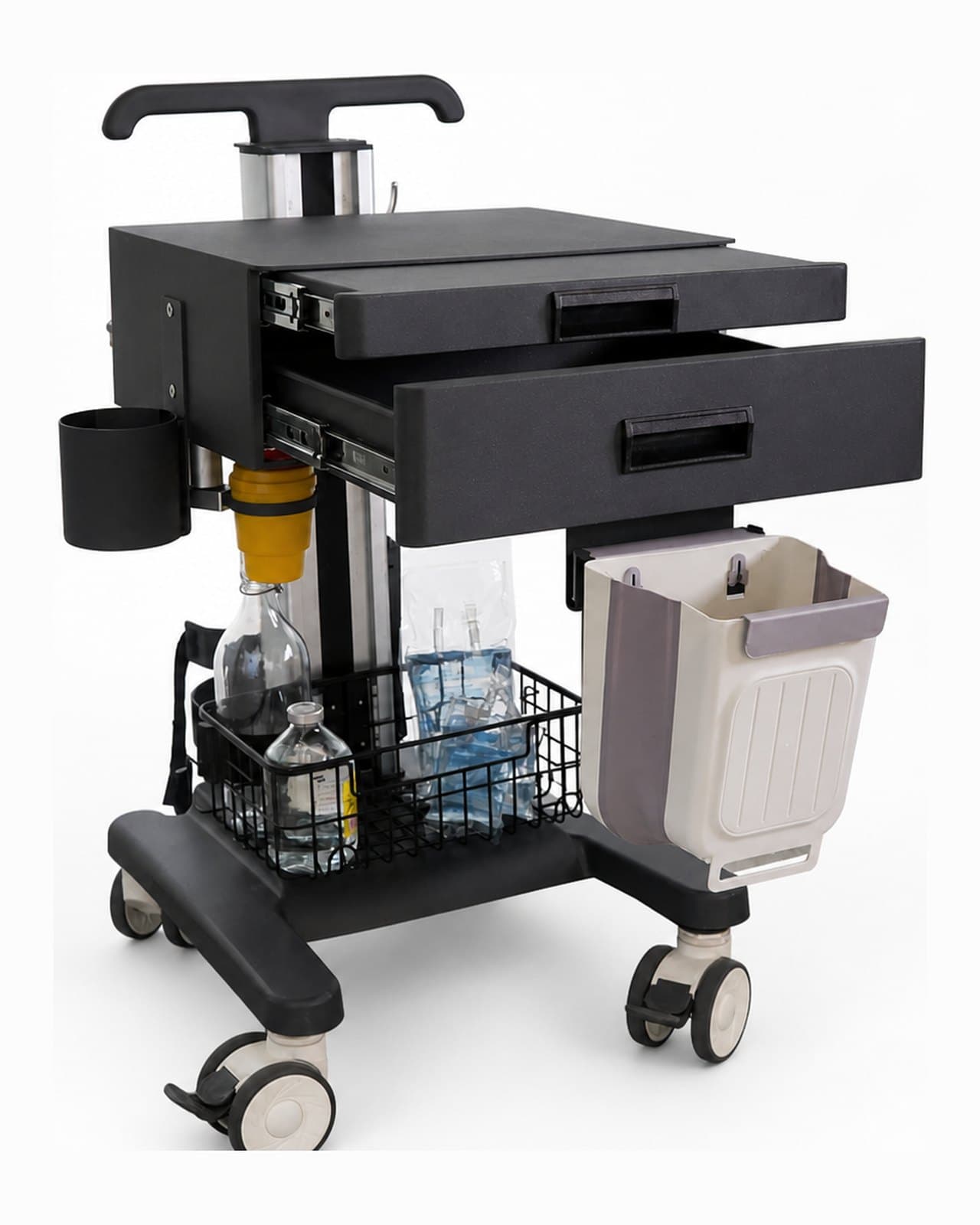

    A worktop that stays organized

    The countertop drawer unit gives you a flat working surface 902 mm from the floor, with an inner drawer on locking rails underneath — instruments and consumables stay in place, even in motion.

  4. 04 / 04

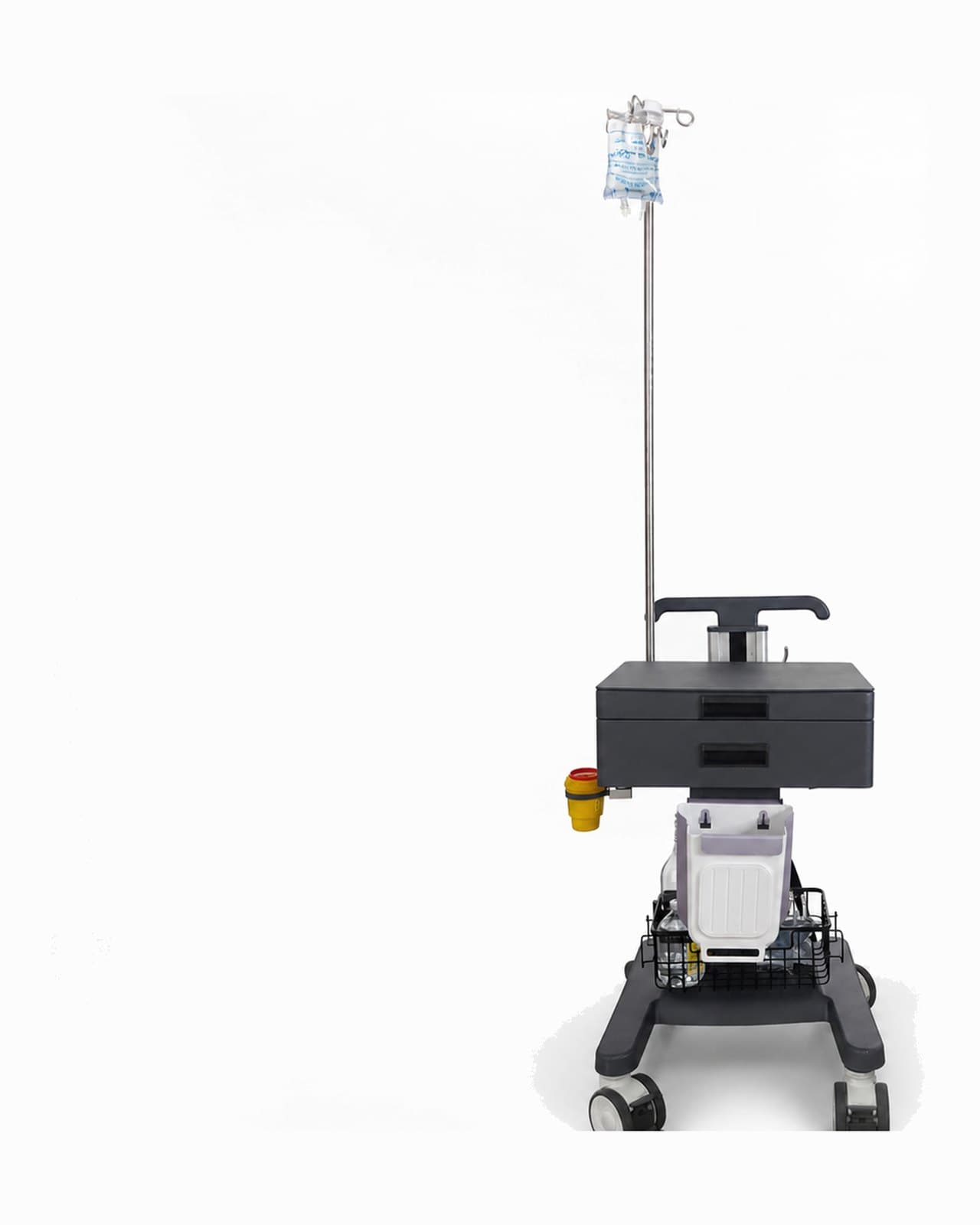

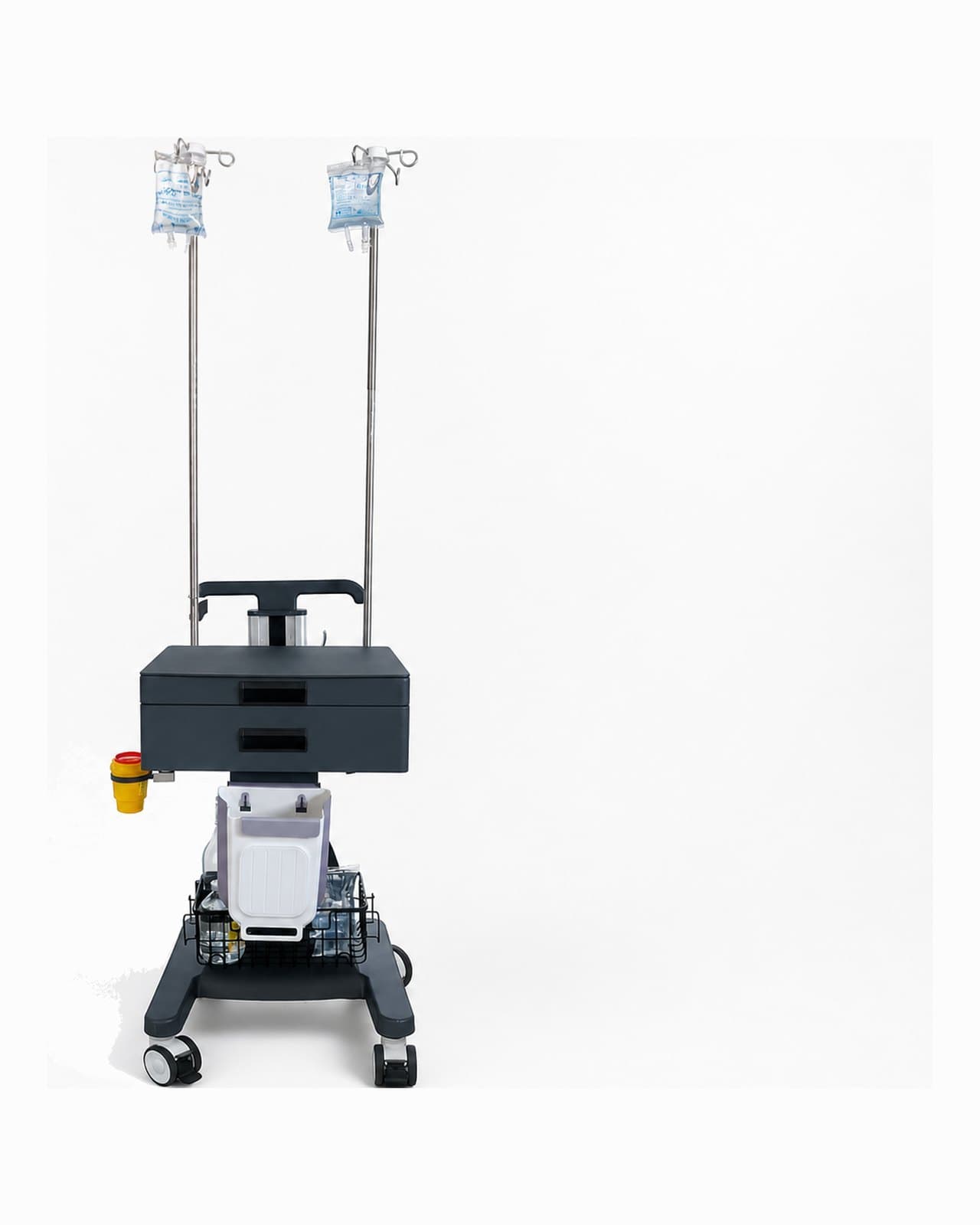

    IV pole, always within reach

    A stainless four-hook infusion pole with a hand-tightening lock rises from the column — adjust the height in seconds, no tools required.

Description

The IVT-300 is a mobile clinical trolley that combines a drawer and countertop unit, an infusion pole and multiple accessory holders on a compact chassis. The configuration supports organized transport and positioning of clinical supplies and compatible accessories in professional healthcare environments.

A four-castor chassis carries an aluminum column with a T-slot mounting system, so every accessory — holders, baskets, brackets — can be repositioned along the column without tools. The countertop drawer unit provides a stable working surface 902 mm from the floor, with an inner drawer on locking rails underneath.

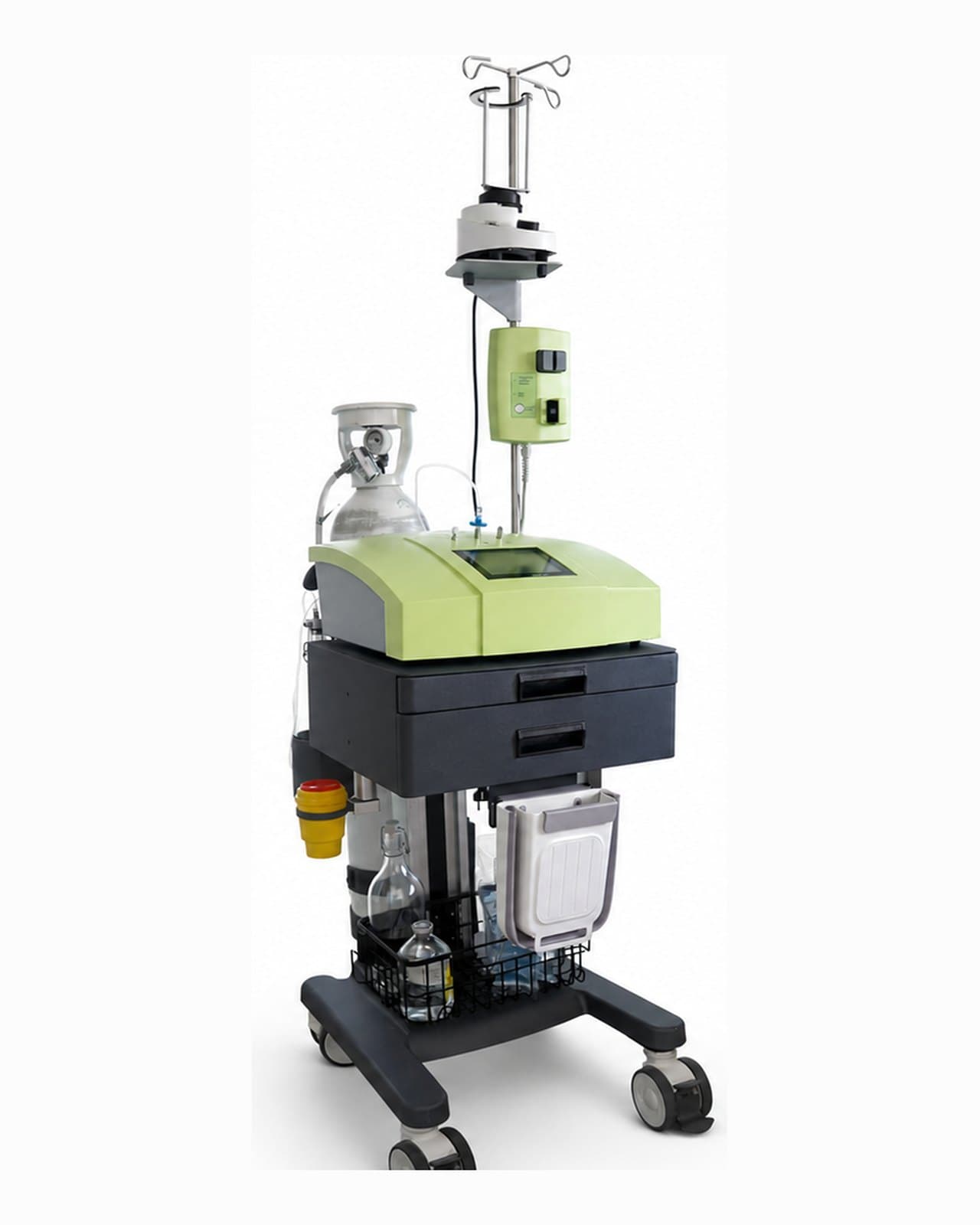

Around it, the trolley keeps a complete treatment-room setup within reach: storage basket, glass bottle holder, sharps-container holder, trash-can hanger, cable-winding bracket, and upper and lower cylinder supports with retention straps. A stainless four-hook infusion pole with a hand-tightening lock completes the platform.

The IVT-300 is a Class I, non-sterile, non-powered medical device without a measuring function, manufactured under a quality management system certified to ISO 13485:2016 (certificate no. 26EMRI61). It ships flat-packed in a single carton with a complete fastener kit, four hex wrenches (3, 4, 5 and 6 mm) and step-by-step assembly instructions.

  • Countertop and drawer unit — integrated upper storage and working surface
  • Push handle assembly for controlled repositioning
  • Four-hook infusion pole with hand-tightening height lock
  • Aluminum column with T-slot system for tool-free repositioning of accessories
  • Accessory storage — wire basket and glass-bottle holder

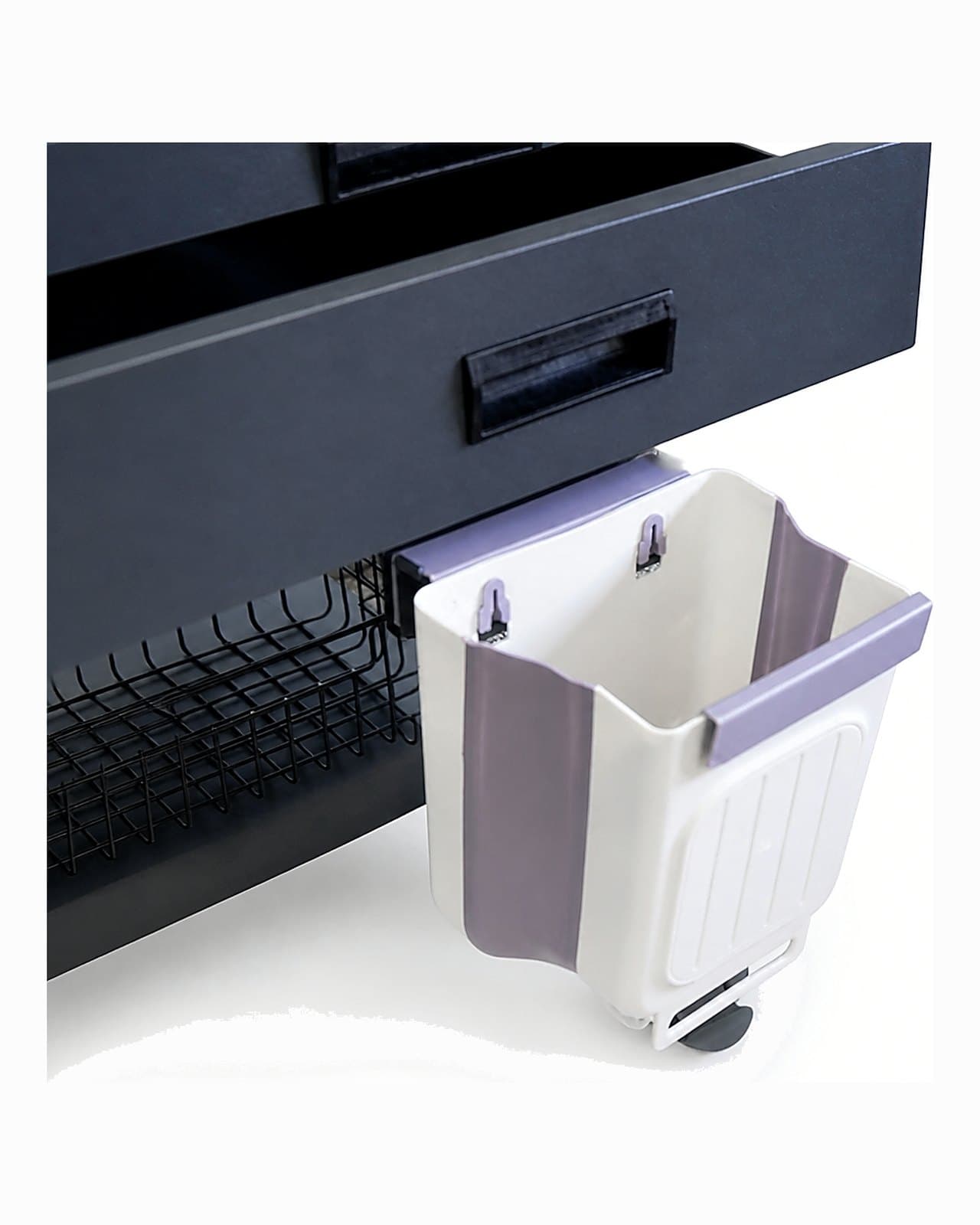

  • Waste and sharps — dedicated hanger and sharps-container bracket
  • Upper and lower cylinder supports with retention straps
  • Four-castor mobile chassis
  • Class I medical device — non-sterile, non-powered, no measuring function
  • Flat-packed with complete hex-key tool kit and step-by-step assembly guide

Specifications

Specifications
SpecificationValue
Product nameMedical Trolley
Model / catalogue no.IVT-300
Overall height shown1329 mm
Upper body width450 mm
Upper body height165 mm
Upper assembly depth376 mm
Worksurface height shown902 mm
MobilityFour-castor chassis
IV supportFour-hook infusion pole
Power requirementNone — non-powered device
Device classClass I — non-sterile, without a measuring function
Classification ruleRule 1 — non-invasive medical device
Quality management systemISO 13485:2016 (certificate no. 26EMRI61)
AssemblyTool-assisted (hex keys included)

In the box

  • Countertop / drawer assembly
  • Push handle assembly
  • Upper and lower cylinder supports with retention straps
  • Storage basket
  • Trash-can hanger
  • Sharps container holder
  • Four-hook IV pole assembly
  • Glass bottle holder
  • Column
  • Chassis
  • Fastener kit
  • 4 hex wrenches (3 / 4 / 5 / 6 mm)
  • Assembly instructions
